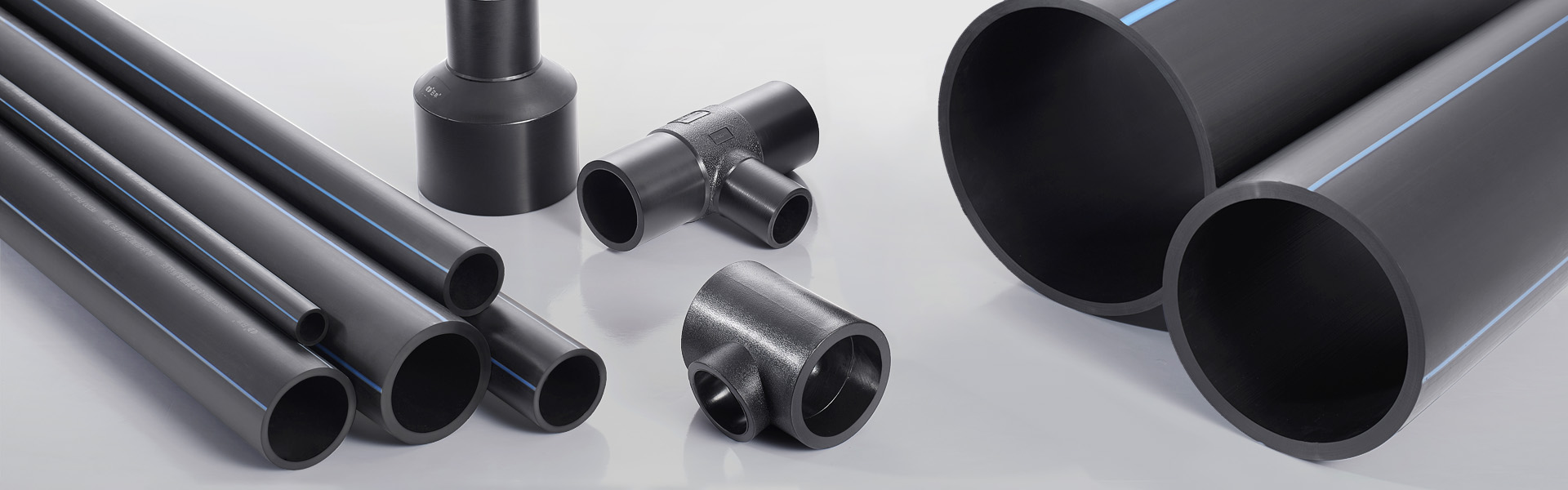

HDPE MUNICIPAL PLUMBING SYSTEM
The RIFENG HDPE water supply pipe is a new type of plastic pipe using high-quality polyethylene, also adding necessary antioxidants, ultraviolet absorbers, and other additives, then processed by an extruder. The product has the advantages of being lightweight, flexible, corrosion resistant, and highly impact resistant.
The connection of the pipe and fittings can be integrated with butt welding, hot-melt socket, and electrofusion. This system is safe, reliable, and low-cost, and has been widely used in engineering.
The RIFENG HDPE water supply pipe is a new type of plastic pipe using high-quality polyethylene, also adding necessary antioxidants, ultraviolet absorbers, and other additives, then processed by an extruder. The product has the advantages of being lightweight, flexible, corrosion resistant, and highly impact resistant.
The connection of the pipe and fittings can be integrated with butt welding, hot-melt socket, and electrofusion. This system is safe, reliable, and low-cost, and has been widely used in engineering.

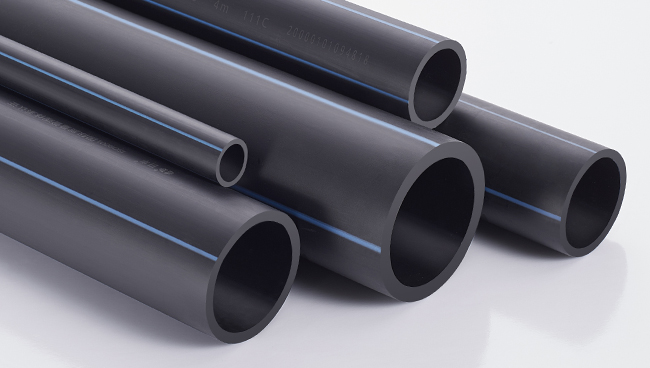

PE100 pipe111
?
?
- Non-toxic, no scaling, does not breed bacteria?and avoids secondary pollution of drinking water；
- The smooth inner wall, corrosion resistance, high strength；
- A wide range of applications and belongs to the emerging pipeline of municipal engineering.
Technical specification
connection method |
Applicable specifications |
Main?connection tools |
Operation scene |
Hot melt socket |
dn20~dn110 |
Hot melt socket?machine  |
Only need a small space, can be used for indoor and outdoor construction |
Butt Fusion |
≥dn63? |
Butt Fusion Machine  |
Need more space, recommended for outdoor construction |

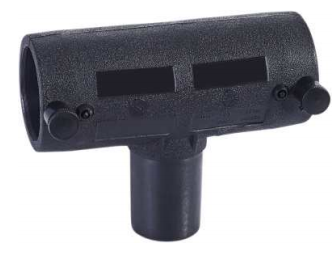

Electrofusion |
All specifications |
Electrofusion welding machine  |
Only need a small space, can be used for indoor and outdoor construction |
When connecting with other material pipes, flanges, threads, steel wire adapters, and other connection methods can be used |
|||
No. |
Item |
Index |
||
| 1 | Elongation at break |
≥350% |
||
| 2 | Longitudinal retraction rate |
≤3% |
||
| 3 | Oxidation induction time |
≥20min |
||
| 4 | Melt mass flow rate |
The change rate of pipes and raw materials does not exceed 25% |
||
5 |
Hydrostatic strength （PE80/PE100） |
20℃,100h |
Ring Stress：9.0/12.4MPa |
No rupture, No leakage |
80℃,165h |
Ring Stress：4.6/5.5MPa |
|||
80℃,1000h |
Ring Stress：4/5.0MPa |
|||
No. |
Item |
Index |
||
1 |
Oxidation induction time |
≥20min |
||
2 |
Melt mass flow rate |
The change rate of pipes and raw materials does not exceed 20% |
||
3 |
Welding strength of electrofusion pipe fittings |
Percentage of brittle failure≤33.3% |
||
4 |
Socket fittings-welding strength of butt welded fittings |
Test failure is toughness |
||
| 5 | Impact strength of saddle bypass |
No rupture, no leakage |
||
| 6 | Hydrostatic strength （PE80/PE100） |
20℃,100h |
Ring stress：10.0/12.4MPa |
No rupture, no leakage |
80℃,165h |
Ring stress：4.5/5.4MPa |
|||
Advantages:
Applications:
- Anti-aging, service life up to 25 years
- Low-temperature resistance, impact resistance
- Excellent resistance to stress cracking
- The smooth inner wall, low water flow resistance
- Multiple construction methods, reliable connection
Applications:
- Urban water supply
- Reconstruction of the water supply network in the old city
- Industrial raw material transportation
- Ore and mud transportation
- Agricultural irrigation
| Outside diameter (mm)?? ? |
PE100 Wall thickness（mm） | ||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| PN0.6 | PN0.8 | PN1.0 | PN1.25 | PN1.6 | |
| 20 | - | - | - | - | 2.3 |
| 25 | - | - | - | 2.3 | 2.3 |
| 32 | - | - | 2.3 | 2.4 | 3.0 |
| 40 | - | 2.3 | 2.4 | 3.0 | 3.7 |
| 50 | 2.3 | 2.4 | 3.0 | 3.7 | 4.6 |
| 63 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | - |
