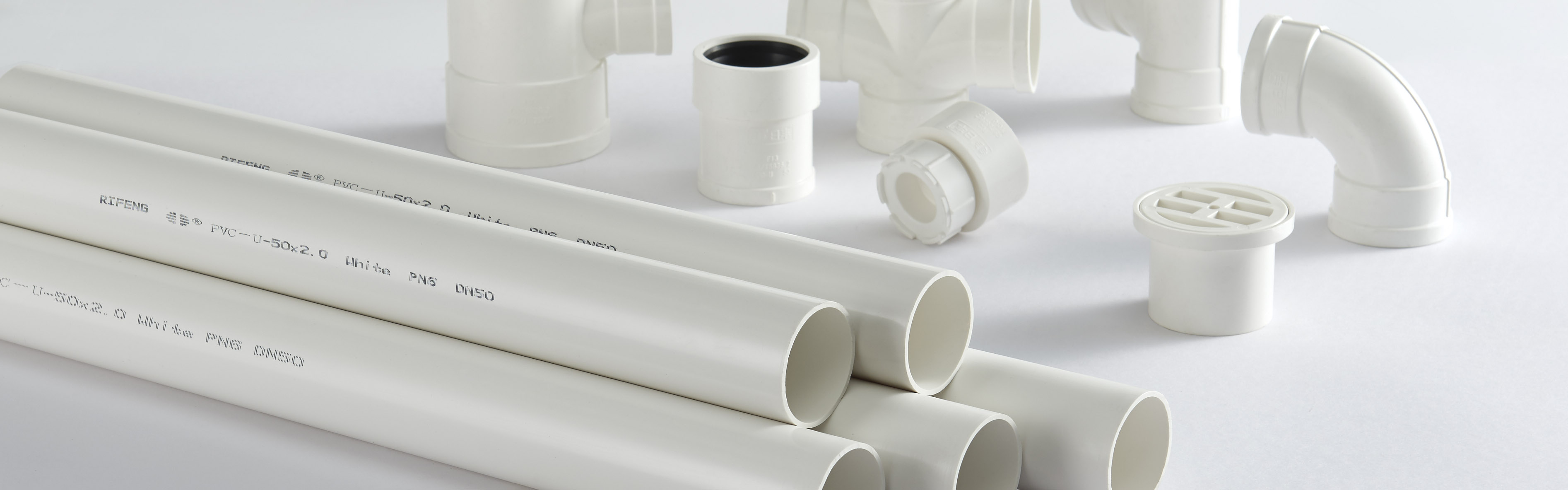

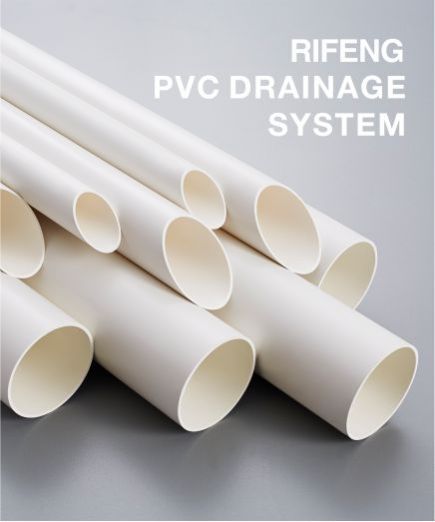

PVC DRAINAGE SYSTEM

RIFENG PVC Drainage Piping System, made of high-quality polyvinyl chloride resins and imported processing additives, has the advantages of high impact resistance, low noise, and smooth inner walls. Moreover, RIFENG has launched its Helix and Hollow Spiral Series, bringing more choices to customers worldwide.

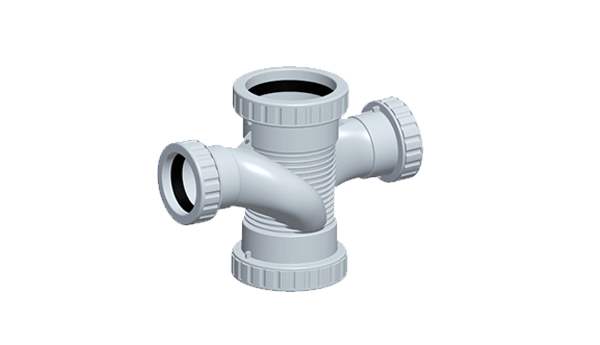

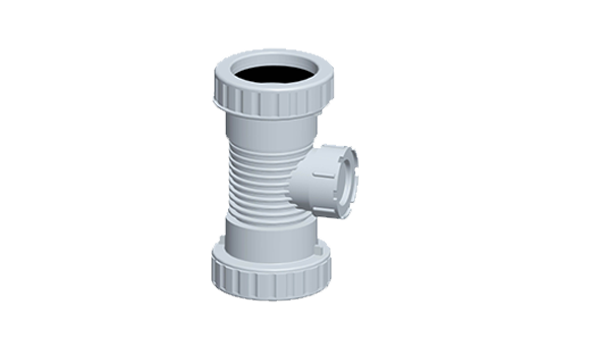

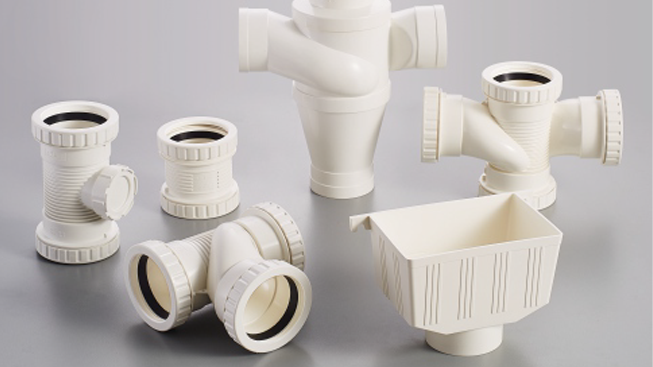

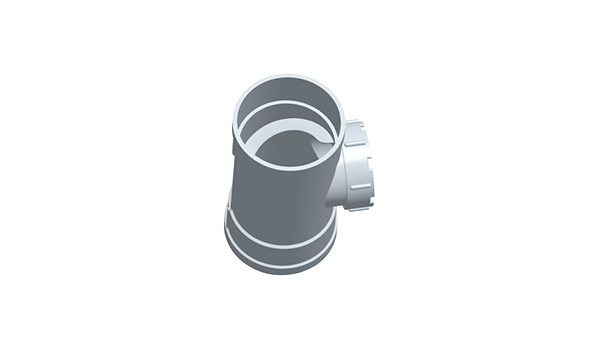

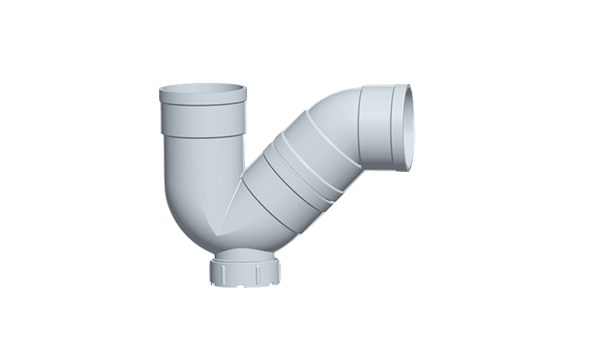

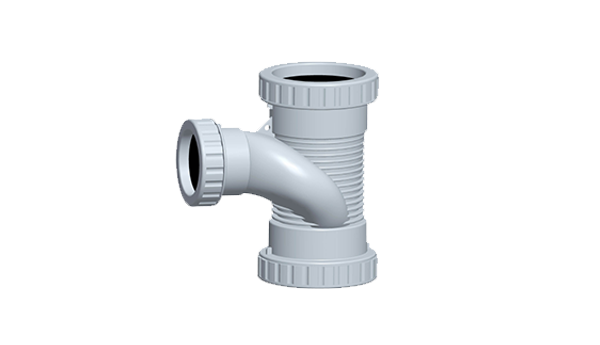

F31 LOW-NOISE FITTINGS
?

? Low noise

The flow is directed from the circumference to the tangential direction to slow the impact of water and reduce drainage noise.

? Leading Flow

Leading the water down through the helix of vertical pipe naturally, developing property for quick drainage.
?

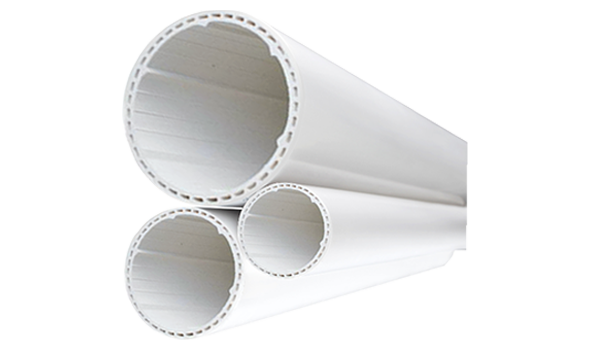

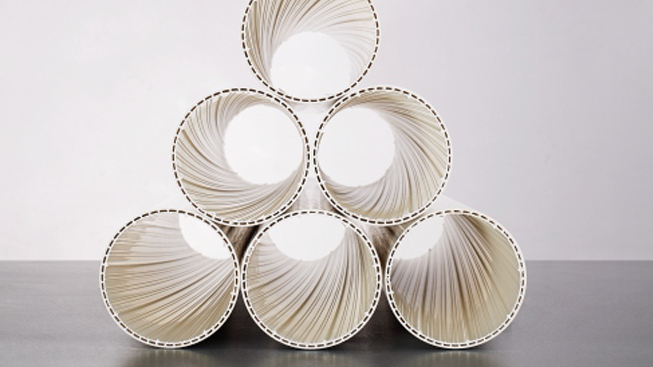

PVC HOLLOW SPIRAL PIPES
?

? Double noise reduction

The pipe is designed as a double-walled structure with enhanced sound insulation.

? Strong pressure resistance

Hollow porous structure design, the ring stiffness is higher than ordinary solid pipe.
?

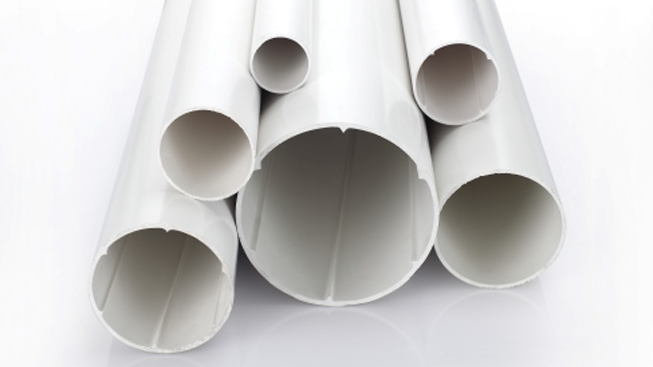

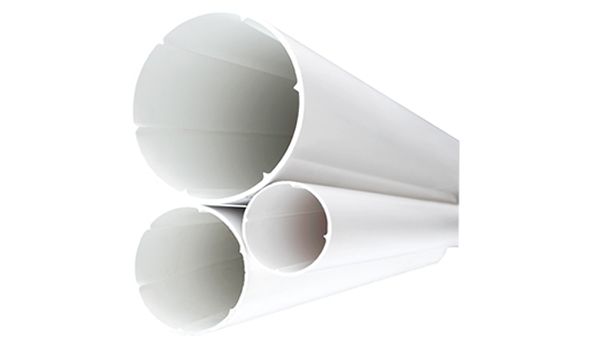

PVC HELIX PIPES

? Low noise
The inner wall is designed with 6 swirling guide columns and the noise is lower than 45 decibels.

? Quick drainage

The flow of DN 110 helix pipe reaches 6L/S, which is two times of general PVC drainage pipe.

Technical specification

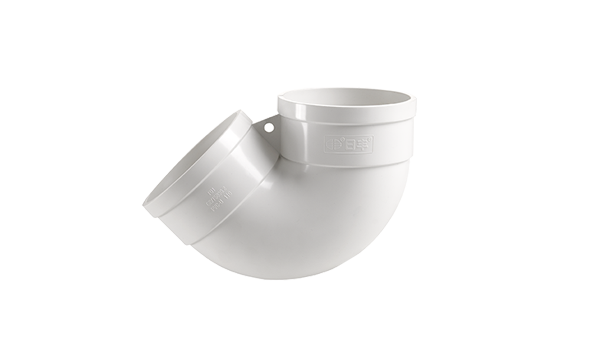

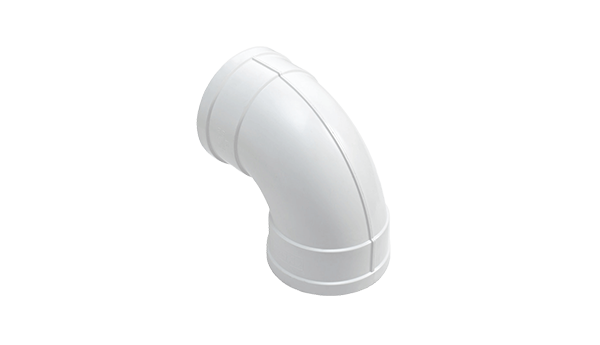

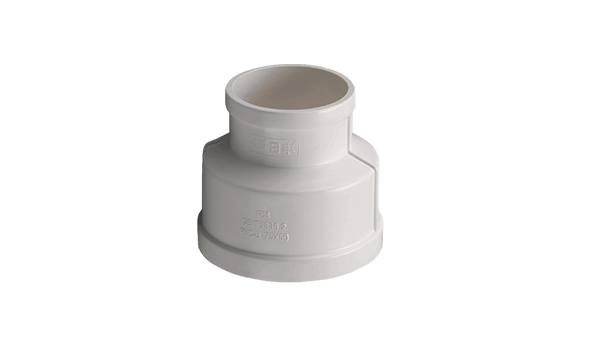

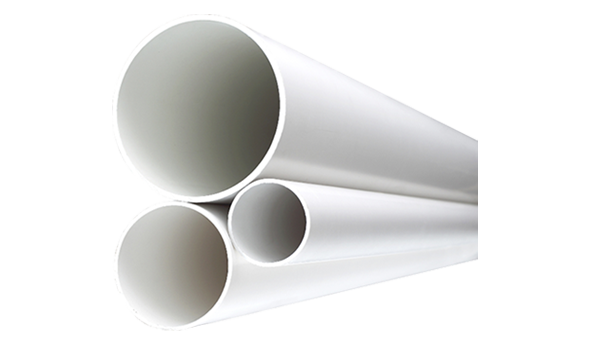

PVC Drainage piping series
Rifeng solid drainage piping series is following GB/T 5836.1-2006 and GB/T 5836.2-2006 standards.
High impact resistance
Excellent physical and chemical property and better tensile strength.
Smooth drainage

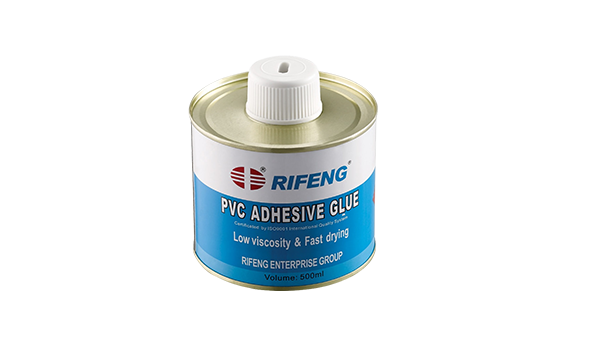

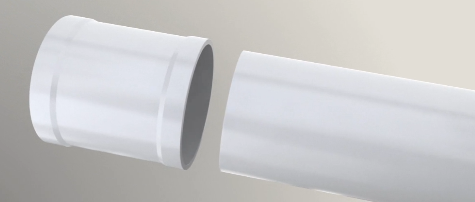

Smooth pipe inner wall and seamless adhesive connection between pipe and Fittings.
Stiffeners
F30 fittings feature unique stiffeners which enable the structure to be more stable.

PVC Low-noise piping series
Rifeng's helix low-noise drainage piping series can achieve rotational flow drainage with its unique interior helix structure. Its helix structure can thus greatly reduce noise.
Low noise
The noise produced is lower than 45 decibel.
Quick drainage
The flow of DN 110 helix pipe reaches 6L/S which is the two times of general PVC drainage pipe.
Water seal
The balance of air pressure prevents stink from entering into house.
?

WaterMark Certificate of Conformity -Level 1
Evaluated to:
AS/NZS 1260:2017- PVC-U pipes and fittings for drain, waste and vent application.
CE marking , a "Symbol of Safety " in the EEA, is verified comply with ISO 3633: 2002-Plastic piping systems for soil and waste discharge (low and high temperature ) inside buildings - Unplasticized poly (vinyl chloride) (PVC-U).

Implementation of the GB/T 5836.1-2006;

No.	Term	Index
1	Density (kg/m3)	1350~1550
2	Tensile strength MPa	≧40
3	Vicat softening temperature℃	≧79
4	Dichloromethane impregnated test	Surface changes are not inferior of 4L
5	Flat test (compress 1/2 of outside diameter)	Sample with no seam
6	Falling weight impact test TIR	TIR≦10%
7	Longitudinal shrinkage%	≦5

Implementation of the GB/T 5836.2-2006;

No.	Term	Index
1	Density (kg/m3)	1350~1550? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
2	Vicat softening temperature℃? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??	≧74? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
3	Oven test	No crack
4	Falling test	?
